Secondary Operations Management for Finished Parts

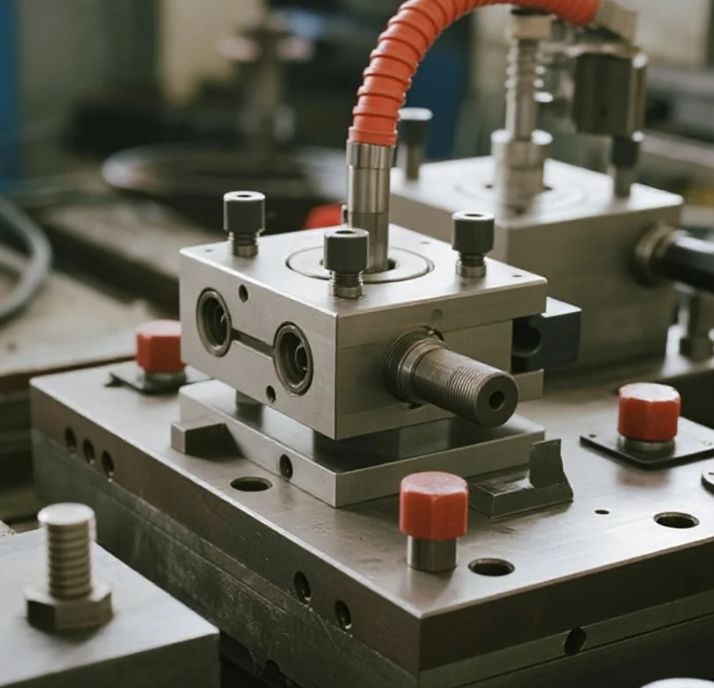

In the world of manufacturing, jigs and fixtures are fundamental tools that ensure precision, consistency, and efficiency in production lines. These specialized devices hold, support, and guide workpieces during various operations—ranging from drilling and welding to assembly and inspection.

For manufacturing engineers and production managers, understanding the latest advancements in jig and fixture manufacturing is crucial to optimizing production quality and reducing operational costs.

This article combines practical industry experience with technical data to provide comprehensive insights into selecting, designing, and implementing effective fixturing solutions for modern production environments.

1. Understanding Jigs and Fixtures: Basic Concepts

In manufacturing, jigs and fixtures are often mentioned together but serve different functions:

• Jigs: Hold the workpiece and guide cutting tools during operations.
  Example: A drill jig ensures precise hole placement using bushings to guide the drill bit.

• Fixtures: Secure the workpiece in a fixed position and orientation but do not guide the tool.
  Example: A milling fixture that stabilizes the part while the cutter moves freely.

Core purposes of both jigs and fixtures:

• Maintain accuracy and precision

• Reduce setup time

• Ensure consistency across production runs

• Lower reliance on operator skill

2. The Critical Role of Jigs and Fixtures in Modern Production

2.1 Enhanced Quality & Consistency

• Dimensional accuracy: Tolerances within ±0.005″ or better

• Repeatability: Identical part positioning eliminates variation

• Reduced scrap rates: Precision fixtures can lower rejection by up to 35%

2.2 Increased Production Efficiency

• Setup time reduced by up to 80%

• Faster operations: 20–30% cycle time reduction

• Multi-operation fixtures: Combine steps into a single setup

2.3 Cost Reduction & Operator Benefits

• Lower labor costs via reduced skill dependency

• Shorter training times

• Improved operator safety and ergonomics

3. Classification of Jigs and Fixtures

3.1 Based on Operation

• Drilling jigs – precise hole placement

• Milling fixtures – high rigidity for milling

• Turning fixtures – designed for lathes

• Assembly fixtures – accurate component alignment

• Inspection fixtures – dimensional verification

3.2 Based on Complexity

• Plate fixtures – simple, low-volume use

• Channel/Box fixtures – for larger or complex parts

• Indexing fixtures – allow controlled part rotation

• Modular fixtures – reconfigurable, flexible systems

Table: Fixture Types vs. Production Requirements

4. Design Considerations

4.1 Core Principles

• 3-2-1 location principle for deterministic positioning

• Fool-proofing (Poka-Yoke) to prevent misloading

• Rigidity & stability to resist deflection

• Quick-release mechanisms for fast handling

• Ergonomics to reduce operator fatigue

4.2 Material Selection

• Tool steel – durability

• Carbide inserts – wear resistance

• Aluminum alloys – lightweight handling

• Composites/polymers – damping or rapid prototyping

4.3 Modern Enhancements

• Additive manufacturing for complex designs

• Modular systems for reconfigurability

• Smart fixtures with sensors for real-time monitoring

• Quick-change systems to minimize downtime

5. Innovative Materials & Methods

5.1 Material Shifts

• Traditional: Mild steel, cast iron, tool steel

• Advanced: Composites, engineering plastics, aluminum/titanium alloys

5.2 Additive Manufacturing (AM)

• Prototyping in 24–48 hours (vs. weeks)

• Enables lightweight, conformal designs

• Cost savings of 60–80% for low-volume runs

2025 Case Study: CNC machining of LPBF aluminum parts

• Machined jigs: Highest accuracy, most stable

• 3D printed polymer fixtures: Cost-effective, slight deviations

• Integrated fixturing interfaces: Lowest cost but largest deviations

6. Implementation Strategy

6.1 Planning

• Identify process bottlenecks

• Calculate ROI and payback period

• Phase in adoption gradually

• Train operators thoroughly

6.2 Design & Fabrication

• CAD + FEA validation

• Prototype testing and refinement

• Operator feedback loops

• Full documentation for setup/maintenance

6.3 Maintenance

• Regular inspections

• Preventive part replacement

• Performance monitoring

• Redesigns aligned with process changes

7. Measuring Success

Key Performance Indicators (KPIs)

8. Future Trends

• Industry 4.0: Smart, sensor-equipped fixtures

• Adaptive fixturing: Self-adjusting for part variation

• Digital twins: Simulations for optimization before production

• Sustainable design: Recyclable and energy-efficient fixtures

• Human-robot collaboration: Fixtures designed for cobots
